Introduction

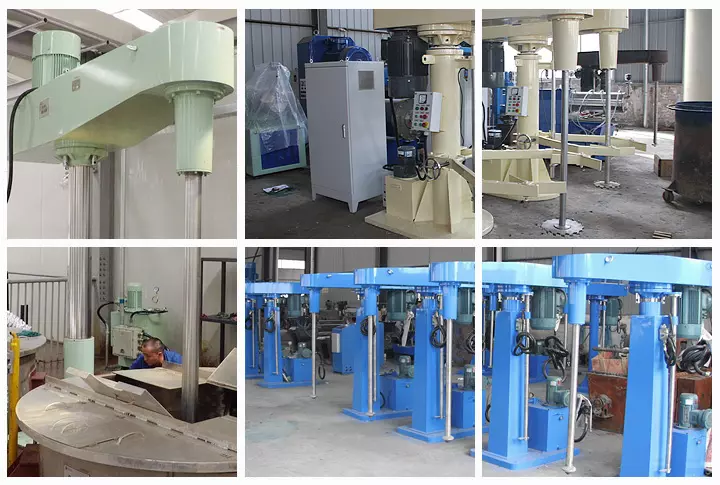

15kW Hydraulic Paints Inks High Speed Disperser is achieved by "saw tooth" mixing blade which rotating at high speed. The blade imparts high shear forces to raw materials. By choosing proper blade size, the raw materials will be repeatedly mixed in the tank until reach a proper fineness. After that, turn materials into bead mill to grind further until to idea grinding fineness.

Features

  • Reliable AC drive to control dispersion shalft rotary speed.
  • Stable lifting method.
  • 360 degree rotary shalft.

Technical Data

Main motor power from 5.5kW(7.5hp) to 18.5kW(25hp)
Series FS5.5 FS7.5 FS11 FS15 FS18.5
Main motor power (kW) 5.5 7.5 11 15 18.5
Main motor power (hp) 7.5 10 15 20 25
Dispersion shaft speed (r/min) 0~1500 0~1500 0~1500 0~1500 0~1500
Height of shaft lifting (mm) 1200 1200 1200 1200 1200
Estimated processing batch(L)

(we take water as example)

 ≤350 ≤400 ≤450 ≤500 ≤700
Length (mm) 1655 1655 1655 2150 2150
Width (mm) 570 570 570 800 800
Height (mm) 1880 1880 1880 1960 1960
Net weight (kg) 1140 1155 1165 1830 1850
Main motor power from 22kW(30hp) to 75kW(100hp)
Series FS22 FS30 FS37 FS45 FS55 FS75
Main motor power (kW) 22 30 37 45 55 75
Main motor power (hp) 30 40 50 60 75 100
Dispersion shaft speed (r/min) 0-1500 0-1200 0-1200 0-1200 0-1000 0-1000
Height of shaft lifting (mm) 1200 1400 1400 1400 1600 1600
Estimated processing batch (L)

(we take water as example)

 ≤1000 ≤1500 ≤2000 ≤2500 ≤3000 ≤4000
Length (mm) 2150 2120 2120 2120 2500 2500
Width (mm) 800 900 900 900 1000 1000
Height(mm) 1960 2200 2200 2200 2500 2500
Net weight (kg) 1885 2000 2055 2085 2310 2425

Note:Technical data are different if there are some customized constructions.We'd like to send you the suitable model bead mills for your production, please feel free to contact with us.

Applications

applications of 15kW Hydraulic Paints Inks High Speed Disperser

Paint / Coating
  • Cathodic Dip Coating
  • Road Marking Paint
  • Construction Paint
  • Marine Paint
  • Automotive Paint
  • Coil Coating
  • Lab
  • Top Coating
  • Wood Paint
  • research&development
  • Dispersion Paint
  • Clear Coating
  • Fillers
  • etc.
 Printing Inks
  • Rotogravure Inks
  • Screen Printing Inks
  • Flexo Printing Inks
  • research&development
  • Lab
  • Heat-set
  • Sheet-fed
  • Ink jet
  • Cold-set
  • etc.
Agrochemistry
  • research&development
  • Pesticides
  • Suspension Concentrate(SC)
  • Labratory
  • Fertilizer
  • etc.
 Pigments / Dyes
  • Titanium Dioxide
  • Labratory
  • Pigment Production
  • research&development
  • etc.
Ceramics / Glass
  • Table Ware / Sanitary Ware
  • LabCeramic Pigments
  • Table Ware / Sanitary Ware
  • research&development
  • Lab
  • Ceramic Pigments
  • Technical Ceramics
  • Technical Ceramics
  • etc.
 Ores / Minerals / Metals
  • Graphite
  • Labs
  • research&development
  • Calcium Carbonate
  • Talc
  • etc.
Life Science
  • Pharmaceuticals
  • Biotechnology
  • Cosmetics / Personal Hygiene
  • research&development
  • Labratory
  • etc.
 Food
  • research&development
  • Labratory
  • Cocoa Liquor
  • etc.
15kW Hydraulic Paints Inks High Speed Disperser could be used for more applications, please contact with us to learn more.
