Liquid Syrup Manufacturing Plant


The Liquid Manufacturing Plants are ideal tools for the pharmaceutical industry for the production of Oral Liquids. It is specially designed to take care of two critical factors which directly affect the quality of the Liquids. Minimum manual handling of Liquid.

Effective cleanness during manufacturing. Capacity ranges from 50 L to 20,000 L.

Needless to say, it also provides the benefits of the effective manpower utilization.

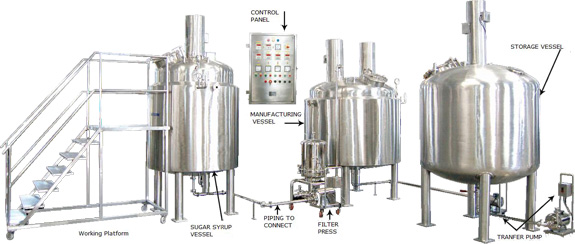

Syrup Manufacturing Plant consist below equipments:

Sugar Melting Vessel

It is made out of 316 sheet all welding is done by an argon are welded & all Joints are ground to smooth finish. It is mounted on S.S.304 construction legs.

Prefilter

It made out of SS 316 quality fitted inline between Sugar melting vessel and syrup Manufacturing Vessel.

Manufacturing Vessel

It is made out of SS 316 sheet & all welding is done by an argon arc and all joints are ground to smooth finish. It is mounted on S.S.304 construction legs.

Storage Vessel

It is made out of SS 316 sheet & all welding is done by an argon arc and all joints are ground to smooth finish. It is mounted on S.S.304 construction legs Zero Hold Filter Press

It is made out of SS 316 quality sheet. Complete unit shall be mounted on Portable trolley.

Inline Homoginizer

SS. 316 Inline homogenizer with mounting & motor attached. Inlet & Outlet 25 NB with tri clover fittings

Control Panel

Made out from SS 304Q consisting fuses, voltmeter, terminal, contactor, on/off switches & wiring.

Technical Specification :

Types Diameter of Plate No. of Plates Filtering Area M2 Cake Holding Capacity Ltrs. Capacity Ltr / Hr
ZHSF – 8x6 8" 6 0.198 4.50 400
ZHSF- 8x8 8" 8 0.254  5.78 500
ZHSF- 14x8 14" 8 0.756  27.00 1500
ZHSF- 14x10 14" 10 0.924 35.00 1800
ZHSF – 18x8 18" D 8 1.270  51.00 2500
ZHSF – 18x15 18" S 15 2.270  44.00 4500
ZHSF -18x12 18" D 12 1.840 78.00 3700
ZHSF- 18x23 18" S 23 3.400 65.00 6800
ZHSF- 24x12 24" D 12 3.430 148.00 6700
ZHSF-24x23 24" S 23 6.336 120.00 12600
ZHSF- 33x7 33" D 7 4.000 175.00 8000
